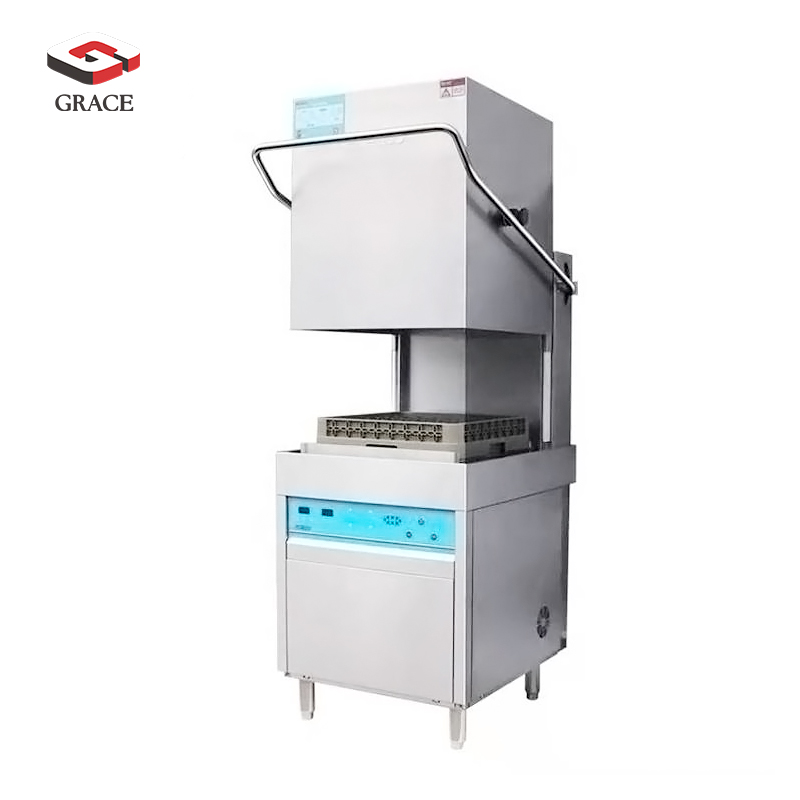

GRACE Hood Dishwasher

โ—‰Model:GR-601H

โ—‰Product Name:Hood Dishwasher

โ—‰Voltage:380V AC/50HZ/3PH

โ—‰Tank Heater:3KW

โ—‰Booster Heater:12.6KW

โ—‰Total Power 16.66KW

โ—‰Total Amps Required(A):33

โ—‰Wash Temperature:10-60ยฐC

โ—‰Rated Current Of Air Circuit Breaker(A) 40

โ—‰NO.of Seats Corresponded(Table):300

โ—‰Package Size:730*850*1610MM

โ—‰NW.:104KG

โ—‰GW.:121KG

Free Quote & Information Request

Please fill out the form below to request a quote or to request more information about us. Please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. We're ready to start working on your new project, contact us now to get started.

"*" indicates required fields

Description

Product Overview


This hood-type dishwasher is engineered for high-volume hotel and restaurant kitchens, delivering efficient cleaning of up to 60 racks per hour. With a 16.66 kW heating system and 5-pump setup, it ensures thorough, hygienic results at rinse temperatures up to 95ยฐC. The stainless steel construction, digital controls, and flexible installation options provide durable, user-friendly performance for demanding food service environments.

Standard Features


โ—‰Ideal for Hotels & Restaurants: Space-saving hood-type design, perfect for hotels, restaurants, and catering facilities.

โ—‰Energy-Efficient Performance: Main wash at 60โ€“75ยฐC and rinse at 82โ€“95ยฐC for hygienic results with low operating costs.

โ—‰High-Capacity Output: Cleans up to 60 racks (1200 plates) per hour, powered by 380V/16.66kW electric heating.

โ—‰5-Pump System Includes: Auto drain pump, wash pump, rinse pump, drying agent, and detergent dosing pumps (peristaltic type).

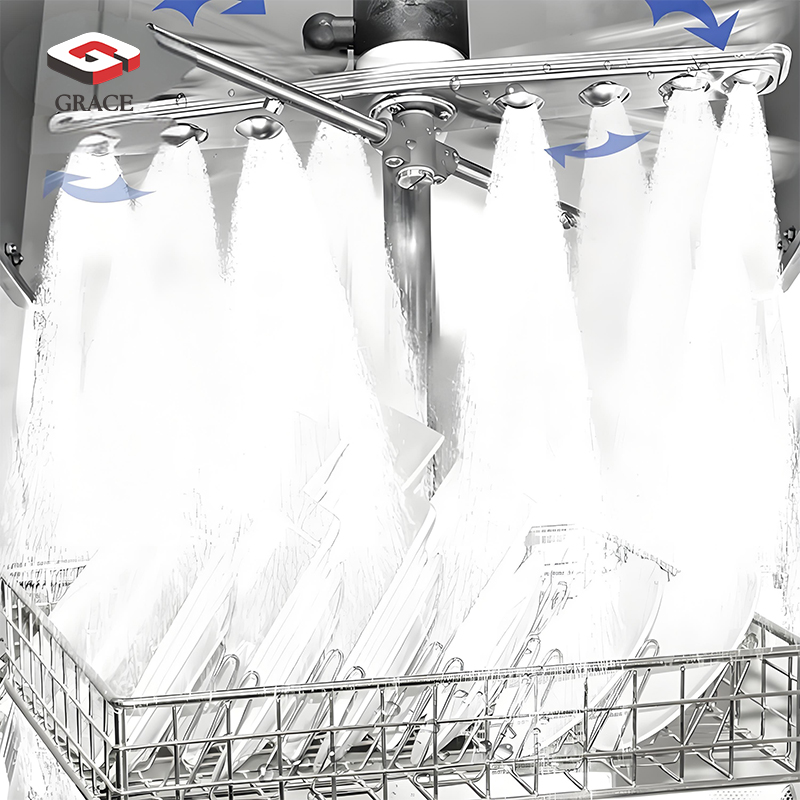

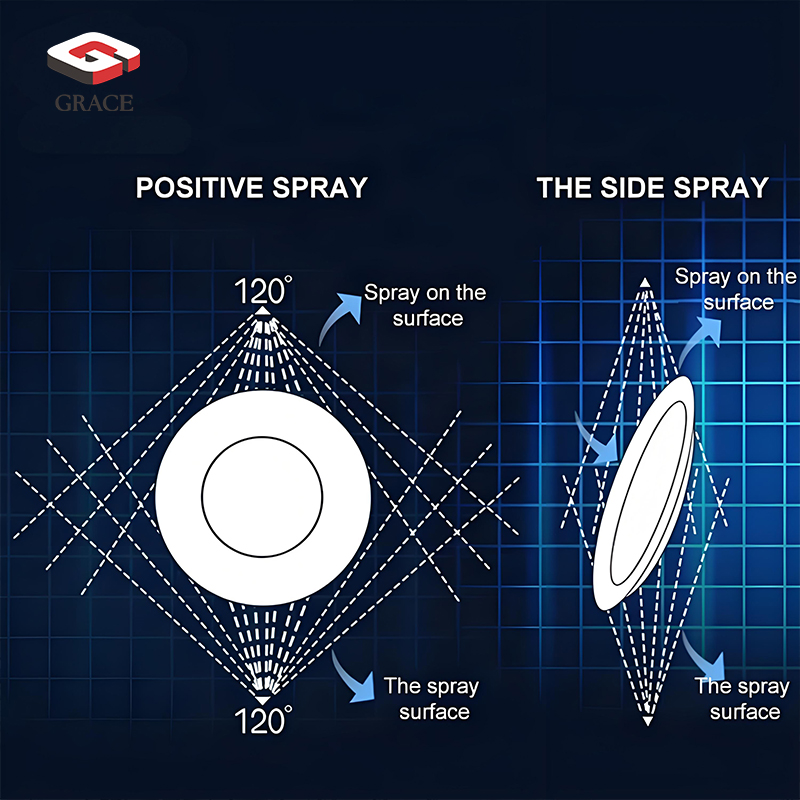

โ—‰Dual Italian Pumps & Open Heater: Features main wash and spray pumps for powerful multi-angle rinsing; includes built-in open-type electric heater.

โ—‰User-Friendly Digital LCD: Easy operation with 3 programmable wash cycles and counting function.

โ—‰Hygienic Stainless Steel Tank: Monoblock construction with rounded corners for easy cleaning and durability.

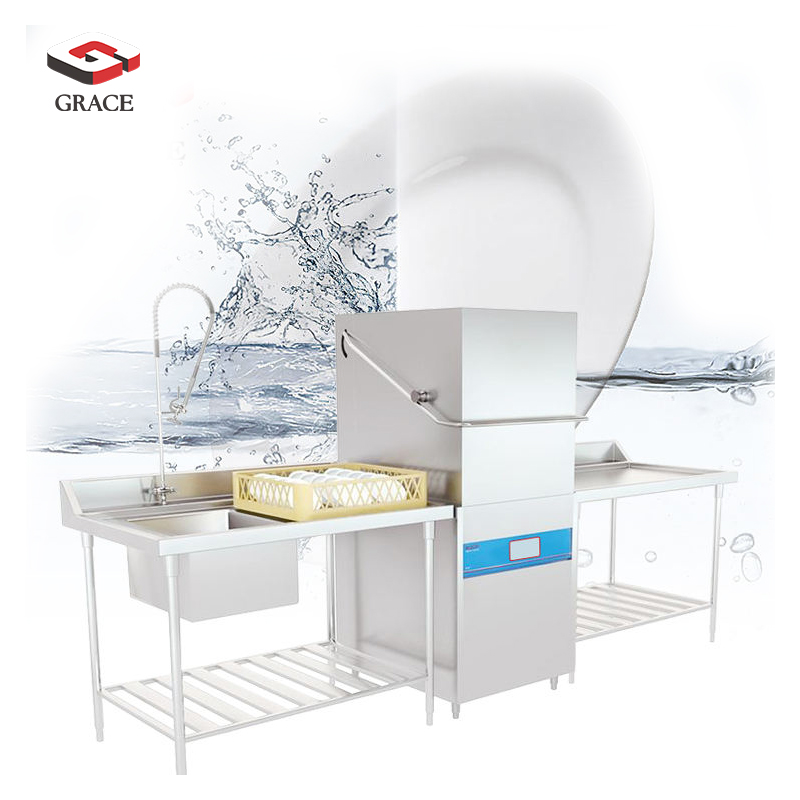

โ—‰Flexible Installation: Suitable for corner or in-line setup to fit various kitchen layouts.
