GRACE Gas Pasta Cooker with Cabinet

The GR-H06G is a floor-standing gas pasta cooker for a dedicated noodle or pasta station. Choose six round baskets for individual portions or three larger rectangular baskets with two handles each for batch cooking.

Rated gas input
14 kW
Footprint
400 × 900 mm
Worktop
2.0 mm SS304

Free Quote & Information Request

Please fill out the form below to request a quote or to request more information about us. Please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. We're ready to start working on your new project, contact us now to get started.

"*" indicates required fields

Description

Basket Options

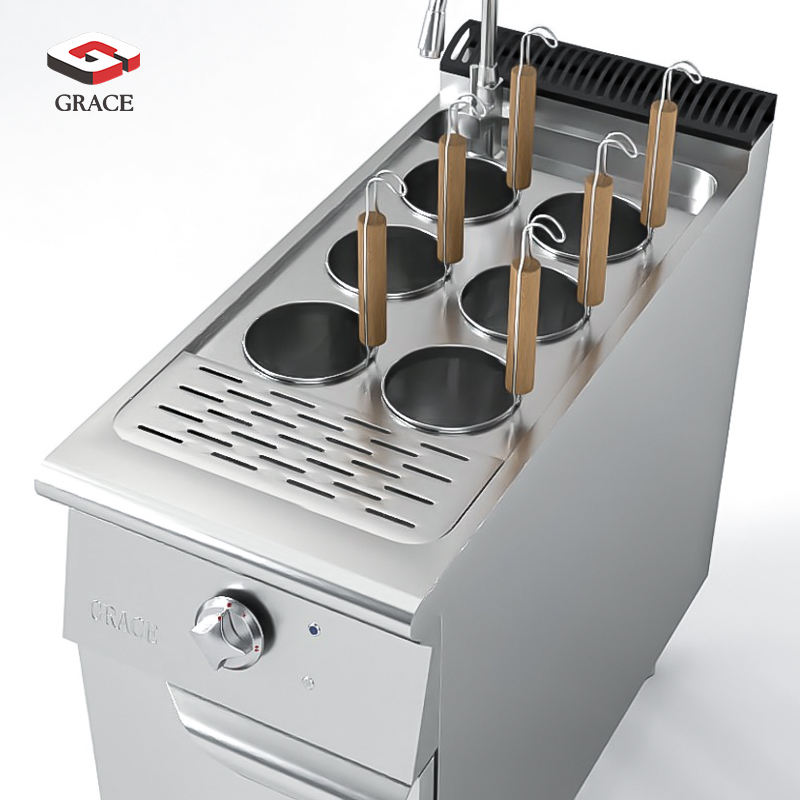

GRACE GR-H06G with six round baskets

Six Round Baskets

Lift out individual portions as orders are ready. Each round basket has its own handle.

GRACE GR-H06G with three rectangular baskets

Three Rectangular Baskets

Cook larger batches in three wider baskets. Each rectangular basket has two handles.

Key Features

Lift-Out Basket Options

Choose six round baskets for separate portions or three larger, double-handled rectangular baskets for batch cooking.

14 kW Gas Heating

Adjust the heat with the front-mounted dial. Match the cooker to the site's LPG or natural gas supply when ordering.

Filling Tap and Drain Plate

Use the worktop tap to fill the cooking tank and the perforated front plate to drain lifted baskets.

Stainless Steel Worktop

The 2.0 mm SS304 worktop sits on a 400 mm wide floor-standing cabinet, leaving nearby counters available for preparation.

Typical Applications

Noodle Shops and Food Courts

Prepare ramen, rice noodles or other individual orders in the six round baskets, lifting each portion as it is ready.

Restaurants and Hotel Kitchens

Use a dedicated cooking-line station for pasta dishes and noodle sides while adjacent equipment handles sauces and other dishes.

Canteens and Catering Kitchens

Use the larger rectangular baskets for batch cooking when preparing several portions for the same service.

GRACE specified the GR-H06G for the main cooking line at Hotel Capri Sitges in Spain.

Specifications

Both basket configurations share these specifications.

SpecificationGR-H06G
ModelGR-H06G
Rated gas input14 kW
Gas inletG 3/4″
Unit dimensions (W × D × H)400 × 900 × (850 + 70) mm
Packed dimensions (W × D × H)450 × 1,020 × 1,080 mm
Net weight50 kg
Gross weight63 kg
LPG pressure2,800 Pa
LPG consumption0.88 kg/h
Natural gas pressure2,000 Pa
Natural gas consumption1.14 m³/h
Worktop2.0 mm SS304

GR-H06G Product Video

See the three rectangular baskets, front controls and filling tap.

Open on YouTube

Request a Quote

Tell us the basket configuration, gas type and delivery destination you need.
